Curve of Best Fit - Intermediate Data Programming

In this section, we will show how you can identify a Curve of Best Fit for a set of data points. The curve can be anything an equation can express, but there are some limitations with discontinuous curves and asymptotes. The easiest is finding a line of best fit. Secondarily, you can find the polynomial that fits the data points. Tertiary, you can provide an equation of a continuous curve involving a combination of functions such as sine or logarithm. Lastly, you can have a non-continuous curve like Sigmoid or `y = 1 / (x - 3).

We will review four different ways to get the equation of a fitted curve.

scipy.stats.linregress: a statistical method that identifies a line’s coefficients as well some statistical information.
numpy.polyfit: a Numpy method that identifies the coefficients of any n-ordered polynomial.
scipy.stats.curve_fit: a statistical method that identifies the coefficients of any function as well as some statistical information about the fit.
ML LinearRegression:

When identifying a Curve of Best Fit, it is good to know how good the curve is at representing the data points. We want an objective quantification that tells us whether a straight line is better at fitting the points, or some other curved line such as a parabola. We can compare how well two different lines fit using the Mean Squared Error.

Often we want to know how much of a correlation there is between the x & y data points. Afterall, we may have just asked Seaborn to plot a regression line and the line presented is the best line that fits the data, but is the data linearly related at all? This is a different, but also important question! This is answered by looking at the Coefficient of Determination.

Understanding R² (Coefficient of Determination)¶

R-squared ( $R^2$ ) is a statistical measure that provides an indication of how well the line of best fit (the regression line) fits the data points. It quantifies the proportion of the variance in the dependent variable (y) that can be explained by the independent variable (x) in a linear regression model.

The R-squared value ranges from 0 to 1. A value of 1 indicates that the regression line perfectly predicts the dependent variable, meaning all the data points lie exactly on the line. A value of 0 indicates that the regression line does not explain any of the variance in the dependent variable, and the points are scattered randomly.

In general, a higher R-squared value indicates a better fit of the line to the data. For example, an R-squared value of 0.8 means that 80% of the variability in the dependent variable is accounted for by the independent variable(s) in the model.

Here is a table that shows some of the most frequent API we used in this section.

API	Notes
plt.plot	This does a simple line plot on the current axis. It does not offer ‘ax=ax’ argument.
plt.scatter	This does a simple scatter plot on the current axis. It does not offer ‘ax=ax’ argument.
np.linspace	This creates a numpy array of values linearly spaced between [start, end] with a specific number of points. It is helpful in generating `x_data` during plotting.
np.polyfit	This identifies the coefficients of any n-ordered polynomial.
linregress	a statistical method that identifies a line’s coefficients as well some statistical information.
curve_fit	A statistical method that identifies the coefficients of any function as well as some statistical information about the fit.
mean_squared_error	Calculates the Mean Squared Error (MSE) from two sets of y_data points.

Required Imports¶

Below are the necessary imports for the code examples in this section:

import random
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

from scipy.optimize import curve_fit
from scipy.stats import linregress
from scipy import stats
from sklearn.metrics import mean_squared_error

sns.set()

# This if for Jupyter Notebook only
%matplotlib inline

Seaborn Regression¶

In many research projects, it is beneficial to find a curved line that best fits the data. Students will often do a scatter plot of the data points and have Seaborn do a regression plot which shows a line of best fit with a shaded area around the line representing a 95% confidence interval. None of that is horrible. It is convenient to have a line of best fit, if there is one. And, regplot will draw one for you by default.

Simple regplot

Code

Comments

true_slope = 3/4
true_intercept = -4
x_data = [ x for x in range(3, 50, 2) ]
y_data = [ x*true_slope + random.randint(-5, 5) + true_intercept for x in x_data]

# Use the grid in the plot and set the line style to black & dashed
plt.grid(True, linestyle='--', linewidth=0.5, color='black')
sns.regplot(x=x_data, y=y_data)

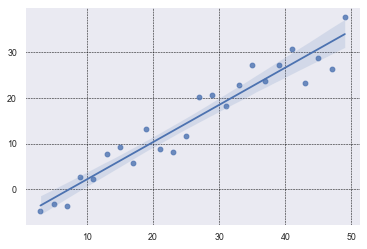

This is about as simple as it gets. We generated x_data with a simple comprehension. We could have also used np.linspace(). We similarly created the y_data and added some noise with random.randint(-5, 5). By default, regplot will add a regression line and a confidence interval. The confidence interval is 95% and students often misunderstand what it means.

It does NOT mean that there is a 95% confidence that the points in the scatter plot will fall within the shaded interval. Clearly, that is not the case!

It means, insteatd, that there is a 95% confidence that the average of the scatter plot data falls within that range. I know what you’re thinking: the average of the data is clear and concrete--there is no need to estimate it. That is true. The average is easy to calculate with a finite set of points that are the true population data. regplot estimates what the true population might look like assuming that your data is just a sample. It then calculates the confidence interval based on the assumption that the errors (residuals) in the regression model follow a normal distribution. It is 95% sure that the true average falls in that range.

Note that in your research, you may want to extend the curve of best fit out further. You can see how to do this in the next plot below.

Here are some helpful links:
Seaborn Tutorial
Seaborn regplot API

Note: It is common to hide the shaded confidence interval in Seaborn’s regplot by setting the named parameter ci to None, as shown below:

sns.regplot(x_data, y_data, ci=None)

SciPy Linregress¶

Annotated Regression

Code

Comments

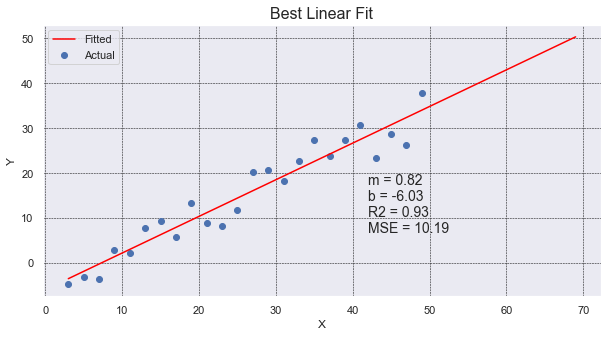

This plot shows a scatter plot of data drawn with plt.scatter. It then finds the line of best fit using linregress. It plots it out, extending an extra 20 values on the x-axis, and it provides data on the graph itself. It shows what the slope and y-intercept are (m & b), gives the $R^2$ value, and lastly it presents the Mean Squared Error.
regplot

# use the same x_data & y_data in example above.
# To find details about the line, we need to use linregress.
slope, intercept, r_value, p_value, std_err = linregress(x_data, y_data)

# generate 100 x_fit points and go out 20 past x_data limits to show "prediction"
x_fit = np.linspace(min(x_data), max(x_data)+20, 100)
y_fit = intercept + slope * x_fit

# create a 'vector' (list of values) for the line of best fit.
# We use the scalar values (1 value) from linregress and the original x_data points.
# We need the same number of y values as are in y_data.
y_predicted = intercept + slope * np.array(x_data)

# Calculate the MSE
mse = mean_squared_error(y_data, y_predicted)

# plot our data points with line of best fit with info on the graph
plt.figure(figsize=(10, 5))
plt.scatter(x_data, y_data, label='Actual')
plt.plot(x_fit, y_fit, color='red', label='Fitted')
plt.grid(True, linestyle='--', linewidth=0.5, color='black')
plt.legend()
plt.title('Best Linear Fit', fontsize=16)
plt.xlabel('X')
plt.ylabel('Y')
plt.text(42, 20, f'm = {slope:.2f}\nb = {intercept:.2f}\nR2 = {r_value**2:.2f}\nMSE = {mse:.2f}',
         ha='left', va='top', fontsize=14)

The nice thing about using linregress is that it will provide multiple pieces of information for us in one simple call. It gives use the slope and intercept values, along with the r_value that we can square to get the Coefficient of Determination.

Interestingly, linregress returns an object, not a list of values. However, because the linrgress object returns implements the special method __iter__, the object can be unpacked into a set of values. This gives some flexibility in how the caller wants to receive the values. The caller can keep the object and dereference the object, or the specific values can be immediately unpacked upon receipt. Cool!

Example call:

    line_info = linregress(x_data, y_data)
    print(f'R2={line_info.r_value**2:.2f}')

Numpy Polyfit¶

Here we use np.polyfit to find the best fit for a line and a parabola. Put another way, the coefficients of a polynomial of degree 1 and 2.

Best Fit Plot

Code

Comments

Correlations

Correlation plot

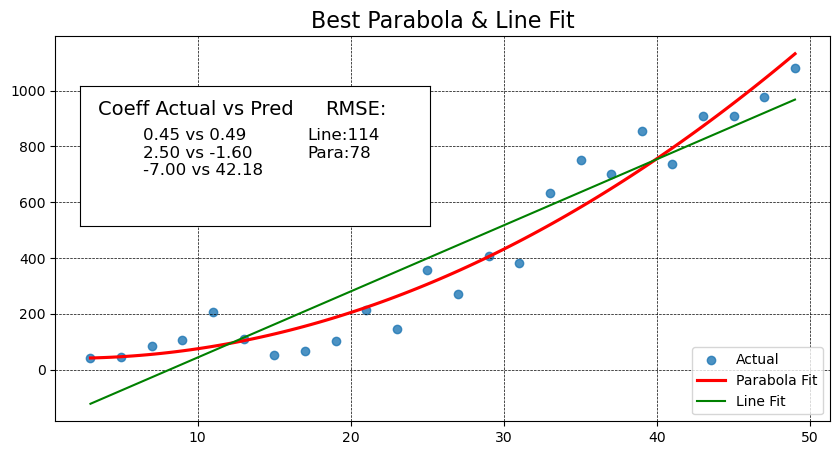

The graph shows many things: scatter plot of data, line of best fit, parabola of best fit, a legend, coefficients of the parabola of best fit, and MSE of both the parabola and line. Whew!
It shows that the parabola is a much better fit for the points.
regplot

# Add standard includes from above


def add_inset_text(fig, position, actual, coeffs):
    # print values in an inset positioned in figure percentages [x, y, width, height]
    ax_inset = fig.add_axes(position)
    ax_inset.set_xlabel('')
    ax_inset.set_ylabel('')
    ax_inset.set_xticks([])
    ax_inset.set_yticks([])
    ax_inset.grid(False)
    text = 'Coeff Actual vs Pred'
    ax_inset.text(0.05, 0.90, text, ha='left', va='top', fontsize=14)
    text = ''
    for a, c in zip(actual, coeffs):
        text += f'{a:.2f} vs {c:.2f}\n'
    ax_inset.text(0.18, .70, text, ha='left', va='top', fontsize=12)
    return ax_inset


def best_parabola_fit():
    def parabola(x, a, b, c):
        y = a*x**2 + b*x + c
        return y

    def generate_points(a, b, c, noise):
        x_data = [ x for x in range(3, 50, 2) ]
        y_data = [ parabola(x, a, b, c) + random.randint(-noise, noise) for x in x_data]
        return x_data, y_data

    # establish our True parabola coefficients
    actual = (0.45, 2.5, -7)
    noise = 150
    x_data, y_data = generate_points(*actual, noise)

    # plot it all
    fig, ax = plt.subplots(figsize=(10,5))

    # Use the grid in the plot and set the line style to black & dashed
    plt.grid(True, linestyle='--', linewidth=0.5, color='black')

    # Eliminate the confidence interval shading of the parabola and color the line red
    sns.regplot(x=x_data, y=y_data, ax=ax, order=2, ci=None, line_kws={'color':'red'})

    # Determine if a linear line is a better fit using MSE
    # find the coefficients of the parabola that best fits the points generated
    # The coefficients are ordered from high order to lower order
    coeffs_2 = np.polyfit(x_data, y_data, 2)
    y_predicted_2 = [ coeffs_2[0]*x**2 + coeffs_2[1]*x + coeffs_2[2] for x in x_data]
    mse_degree_2 = mean_squared_error(y_data, y_predicted_2)

    #  get coefficients for the line
    coeffs_1 = np.polyfit(x_data, y_data, 1)
    # Use vector math instead of a comprehension this time (because we can)
    y_predicted_1 = coeffs_1[1] + coeffs_1[0] * np.array(x_data)
    mse_degree_1 = mean_squared_error(y_data, y_predicted_1)
    print('RMSE Degree2:',  np.sqrt(mse_degree_2), ' RMSE Degree1:', np.sqrt(mse_degree_1))

    # add MSE to our inset text box
    ax_inset = add_inset_text(fig, [0.15, 0.50, 0.35, 0.28], actual, coeffs_2)
    ax_inset.text(0.7, 0.90, 'RMSE:', ha='left', va='top', fontsize=14)
    text = f'Line:{np.sqrt(mse_degree_1):.0f}\nPara:{np.sqrt(mse_degree_2):.0f}'
    ax_inset.text(0.65, .70, text, ha='left', va='top', fontsize=12)

    # since plt.plot() does not offer ax=ax argument, and without it we plot on the inset,
    # use ax.plot() to get the line to show up on the right axis.
    ax.plot(x_data, y_predicted_1, color="green")
    ax.set_title('Best Parabola & Line Fit', fontsize=16)

    # Need to set the legend on the axis to get things to show up correctly,
    # even when setting label=''values' during plots, we need to set the label strings here.
    ax.legend(['Actual', 'Parabola Fit', 'Line Fit', ], loc='lower right')

best_parabola_fit()


"""

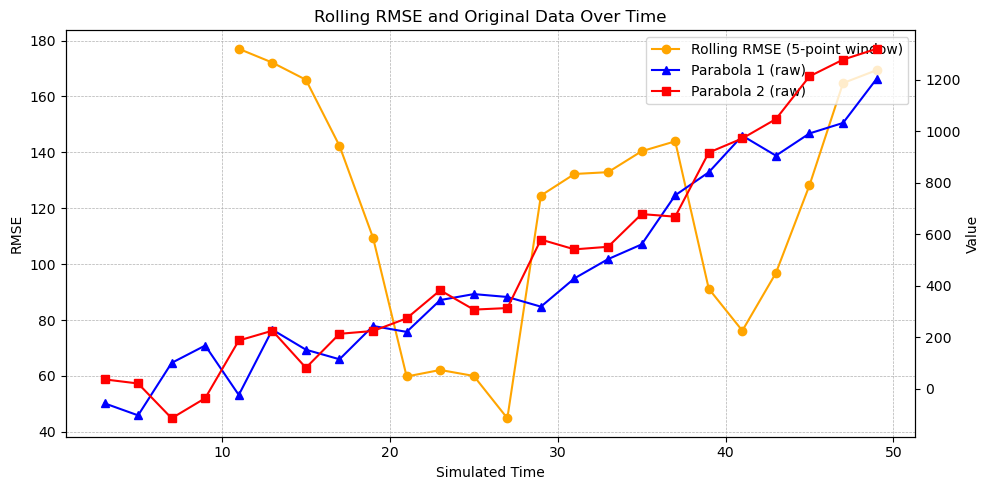

In this example we take two different, but similar, parabolas and compare
their MSE over time with a rolling average.
Note: You will have to normalize your data with a std dev normalization
first if you are using data with different units.
(zscore is a common way to do this)

i.e. y_norm = scipy.stats.zscore(y)
"""

def parabola(x, a, b, c):
    return a * x**2 + b * x + c

def generate_points(a, b, c, noise):
    x = np.arange(3, 50, 2)
    y = np.array([parabola(val, a, b, c) + random.randint(-noise, noise) for val in x])
    return x, y

# 1. Data generation
actual1 = (0.45, 2.5, -7)
actual2 = (0.50, 2.0, -10)
noise_level = 150

x_data, y1 = generate_points(*actual1, noise_level)
_,     y2 = generate_points(*actual2, noise_level)

# 2. Rolling RMSE calculation (5-point window)
window = 5
rolling_rmse = []
for i in range(len(x_data)):
    if i + 1 < window:
        rolling_rmse.append(np.nan)
    else:
        w1 = y1[i-window+1:i+1]
        w2 = y2[i-window+1:i+1]
        mse = mean_squared_error(w1, w2)
        rolling_rmse.append(np.sqrt(mse))

# 3. Plotting
fig, ax1 = plt.subplots(figsize=(10, 5))

# Left axis: rolling RMSE
ax1.plot(x_data, rolling_rmse, marker='o', color='orange',
         label='Rolling RMSE (5-point window)')
ax1.set_xlabel("Simulated Time")
ax1.set_ylabel("RMSE")
ax1.grid(True, linestyle='--', linewidth=0.5)
ax1.legend(loc='upper left')

# Right axis: raw parabola data
ax2 = ax1.twinx()
ax2.plot(x_data, y1, marker='^', color='blue', label='Parabola 1 (raw)')
ax2.plot(x_data, y2, marker='s', color='red',  label='Parabola 2 (raw)')
ax2.set_ylabel("Value")

# Combine legends from both axes
h1, l1 = ax1.get_legend_handles_labels()
h2, l2 = ax2.get_legend_handles_labels()
ax1.legend(h1 + h2, l1 + l2, loc='upper right')

ax1.set_title("Rolling RMSE and Original Data Over Time")
plt.tight_layout()
plt.show()

Curve Fit¶

Here we see how we can find a curve of best fit to a custom, continuous curve: a logarithmically degrading, sinusoidal wave. This is a continuous curve with no x-value that causes a division by zero. This allows us to use the curve_fit API. It will highly unlikely that you’ll ever want to fit a set of points to a curve like this. In the event that you ever encounter wave data, you’ll more likely want to leverage Fourier Transforms. The reason we use a sinusoidal wave is simply to illustrate how curve_fit can be used on any curve.

To fit a line to a curve:

Identify an equation that you want to fit. You’ll create a method that has the generalized equation with coefficients that are unknown. For example, a line is: y = mx + b where curve_fit will identify the values for m and b. You may have a polynomial curve such as: y = a*x**4 + b*x**3 + c*x**2 + d*x + e and curve_fit will find the values for a through e. If you know want to fix one of the values, you can use a constant to the known value. Write a method that takes x along with the coefficients are arguments. For example:

def my_function(x, a, b, c):
    return a*x**2 + b*x + c

Select a set of values for the coefficients that represents a valid guess. Assign these coefficients to a list, often named, p0. You’ll provide p0 as an argument to curve_fit to help it get started as well as to understand how many coefficients to solve for.
You’ll call curve_fit with the following arguments: method pointer, set of points you want to fit, along with the initial guess. For example:

# curve_fit returns a tuple. The first item is a list of coefficients. The second
# is statistical information about the coefficients. In this example we ignore
# the covariance values, and so we unpack them into the identifier '_' which is a conventional
# name for a variable that goes ignored and unused.

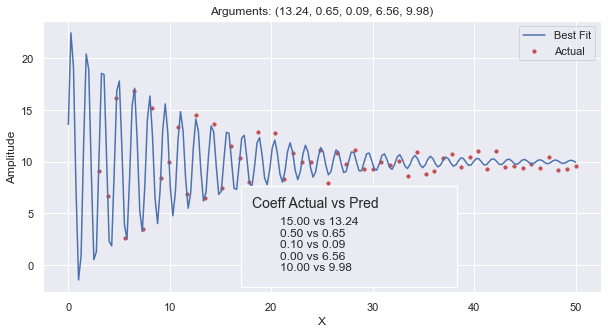

coeffs, _ = curve_fit(logarithmic_sinusoidal_wave, x_data, y_data, p0=p0)

Sinusoidal

Best Fit

Code

Comments

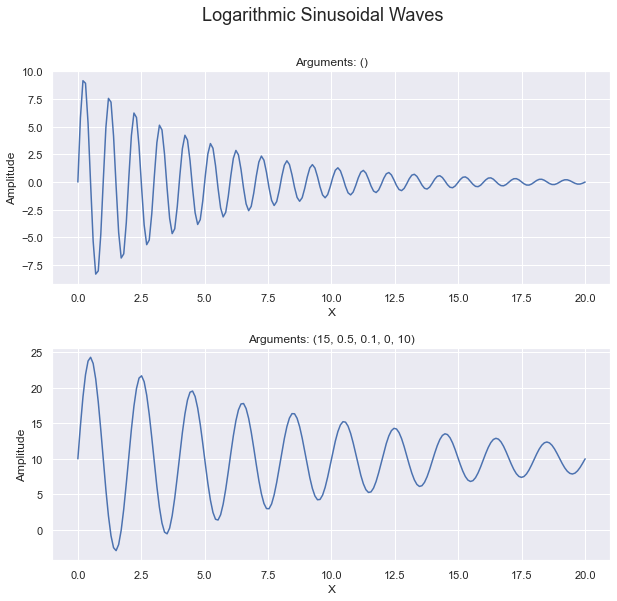

In our custom curve, we have coefficients for each of the following: amplitude, frequency, rate of logarithmic degradation, phase and offset.

The top plot has “zero arguments” provided in the method logarithmic_sinusoidal_wave which means that it uses all the default values (10, 1, 0.2, 0, 0). This is why the title of the top plot is: “Arguments: ()”.

The bottom plot is the same equation but with specific coefficients provided (15, 0.5, 0.1, 0, 10). It shows how the coefficients impact the curve. Pay attention to the values on the y-axis.
regplot

See Code¶

def logarithmic_sinusoidal_wave(x, a=10, frequency=1, r=0.2, phase=0, offset=0):
    # Logarithmic convergence of amplitude
    amplitude = a * np.exp(-r * x)
    return offset + amplitude * np.sin(2 * np.pi * frequency * x + phase)

def plot_with_args(ax, x_max, *args):
    # Generate x values
    x = np.linspace(0, x_max, 200)
    # Compute y values (plural)
    y = logarithmic_sinusoidal_wave(x, *args)

    # Plot on the axis & show labels
    ax.plot(x, y)
    ax.set_xlabel('X')
    ax.set_ylabel('Amplitude')
    ax.set_title(f'Arguments: {args}')

def show_sinusoidal_curve():
    fig, (ax1, ax2) = plt.subplots(2, figsize=(10, 9))
    # add some more spacing horizontally between the two subplots
    plt.subplots_adjust(hspace=0.3)
    plot_with_args(ax1, 20)

    wave_args = (15, 0.5, 0.1, 0, 10)
    plot_with_args(ax2, 20, *wave_args)

    plt.suptitle('Logarithmic Sinusoidal Waves', fontsize=18)

 def find_curve_best_fit():
    def generate_points(noise, *args):
        '''
        *args : allow us to call the function with any number of arguments so long as they are in order.
                we would just default the rest of the argument values.
        '''
        x_data = np.linspace(3, 50, 55)
        y_data = [ logarithmic_sinusoidal_wave(x, *args) + random.uniform(-noise, noise) for x in x_data]
        return x_data, y_data

    # establish our True curve parameters and generate points
    wave_args = (15, 0.5, 0.1, 0, 10)
    x_data, y_data = generate_points(1, *wave_args)

    # get our initial guess as to what the coefficients will be.
    # the count of arguments here tells curve_fit how many arguments to optimize.
    p0 = (15, 1, .5, 0, 0)
    # find our curve of best fit from the line, and round off the coefficient values
    coeffs, _ = curve_fit(logarithmic_sinusoidal_wave, x_data, y_data, p0=p0)
    coeffs = tuple([ round(t, 2) for t in coeffs  ])

    # Plot all of it
    fig, ax = plt.subplots(1, figsize=(10, 5))
    ax.scatter(x_data, y_data, s=10, color='r')
    plot_with_args(ax, 50, *coeffs)
    ax.legend(['Best Fit', 'Actual'])
    pos = [ .4, .14, .3, .28 ]
    add_inset_text(fig, pos, wave_args, coeffs)

The code for the sinusoidal curve equation is provided in the ‘See Code’ dropdown in the ‘Sinusoidal’ tab. In this method we chose to have all the coefficients be named arguments with default values. This allows us to to easily modify our code to hold some values constant and allow curve_fit to solve for the others. If we had chosen to make p0 have only two values in it, then curve_fit would have solved for amplitude & frequency while holding r, phase and offset constant.

In this plot, we first generated our set of points to which we will fit the sinusoidal curve. These points are intended to be ‘actual’ data points in our hypothetical experiment that will have some noise. We generate the points by calling our sinusoidal method will all the coefficients and then add some random values intended to be “noise” or imperfections in the data.

We chose to pass around the many coefficient to generate_points and logarithmic_sinusoidal_wave by using a tuple of values. wave_args is a tuple with all the “true” coefficients used in the hypothetical experiment. The use of tuple shortens the code and makes it easier to read, so long as you understand what is going on. We unpack the values when we call generate_points which collects and repacks them into the tuple named ‘args’. In turn, it can easily call the sinusoidal method with the tuple. Altogether, this allows us to generate points and solve for coefficients using as many or as few arguments as we want, using default values for the rest.

Confusing? See Arguments for more information.

When generating our data points, we make use of linspace which is a nifty method that allows us to quickly set a minimum, maximum, and an arbitrary number of points. It generates values evenly spaced in that range.

curve_fit does a lot of work for us, making use of calculus and statistics to find the coefficients to the equation we established. Each coefficient represents one dimension, and our equation represents values in an n-dimensional space. It then uses a method similar to “Gradient Descent” to find values that minimize the Mean Squared Error for our coefficients and the set of actual points.

Confusing? See the video, Gradient descent, how nerual networks learn, by 3Blue1Brown, to get a great visual on Gradient Descent. This video is tailored to neural networks, but the idea is the same. Gradient Descent is a mathematical method for optimizing in n-dimensional space.

Note that in ax.scatter we provided the x & y data as lists and set some named arguments. It can be frustrating that plotting methods often have named arguments with different names. When we call scatter on the axis object, we set s to change the size of the markers (or dots).

To add more value to the graph, we create an inset with text on the graph.

ML regressions¶

The study on distance using Machine Learning models is done on another page.

See ML Study¶

Predicting Distance
