Line Plots

Line Plots are likely the most common plot you’ll create in IDP. It is fantastic for showing correlations. While line plots are not complicated, it can be frustrating to draw multiple lines as you intend. Furthermore, there are many different API available to draw lines and they accept different named arguments (which is frustrating!).

On this page you’ll see how to:

• draw multiple lines using various libraries

• do Time-Slices of a TimeSeries

• rescale the axis for specific lines only

• customize line styles

Libraries¶

There are several different libraries and objects that allow you to plot a line. The one you use depends on the structure of your data and the complexity of your plot. I have found that the most useful object to use when drawing is the DataFrame where you can do most of what you want to do. When doing subplots, using the Axes object becomes invaluable.

You should read and become familiar with all the named arguments and options for each library/object.

Helpful Resources/API¶

• matplotlib Colors : List of color names

• plt.clf : Clear the current figure

• plt.gca : Get figure’s axes

• plt.xticks : Customize the x-axis tick marks and/or labels. Note that **kwargs applies to the style of the text and are documented here

• ax.annotate : Draws text on the axes

Data¶

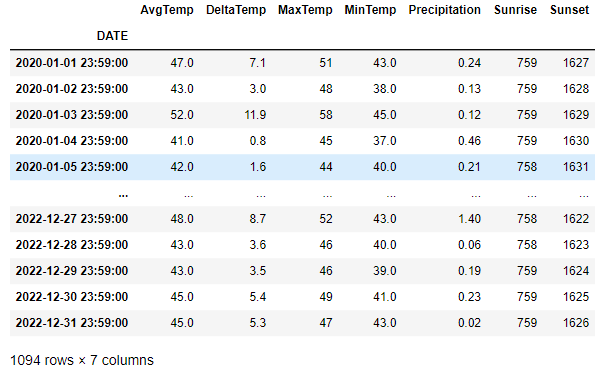

The data is three years of temperature data from Snohomish county. This page will do some computations and data organization to enable better plots, but this is what the data basically looks like. We load it as a TimeSeries using pd.read_csv.

DataFrame¶

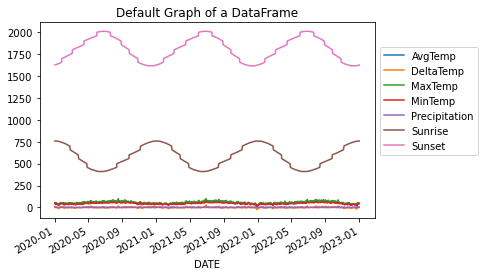

# This will plot all columns on the same axes so long as all the values
# in each cell is a numerical value
df.plot()
# move the legend to the side by tying the upper-left of the legend
# to the coordinate (1,.9) which is in units of percentages of the drawn figure.
plt.legend(loc='upper left', bbox_to_anchor=(1.0, 0.9))
plt.title('Default Graph of a DataFrame')

df.plot(y=['MinTemp', 'MaxTemp'], legend=False)
plt.title('Min/Max Temperatures')

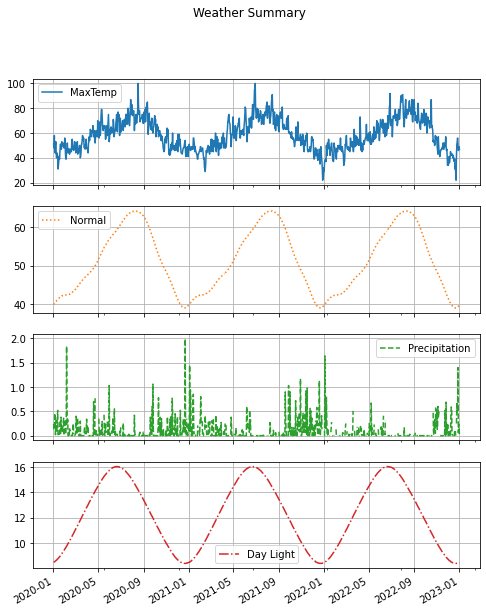

df.plot(figsize=(8,10),
        y=['MaxTemp', 'Normal', 'Precipitation', 'Day Light'],
        subplots=True, title='Weather Summary', grid=True,
        style=['-', ':', '--', '-.'], xlabel='')

Simple Plots¶

Temperatures

Day light

Min & Max

Custom Line

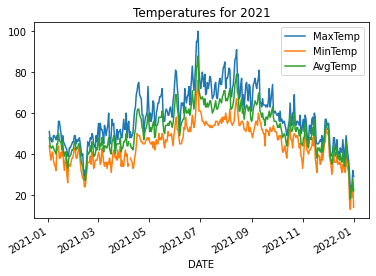

We take a slice of the dataframe using loc and then plot only three columns.

# do a time-slice using the fact that we have a TimeSeries and plot only 2021
# plot the three lines on the DataFrame by providing all the column names
df.loc['2021-01':'2021-12'].plot(y=['MaxTemp', 'MinTemp', 'AvgTemp'])
plt.title('Temperatures for 2021')

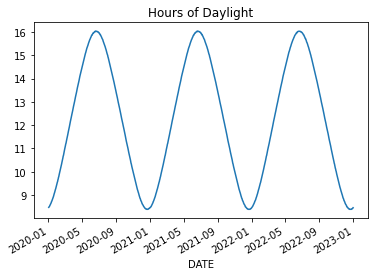

We do some math on Sunrise and Sunset to convert them to fractions of an hour and thereby eliminate the apparent jumping. We convert the minutes t%100 to be a percentage of an hour. The following code adds three new columns ['SunsetHr', 'SunriseHr', 'Day Light'] to the DataFrame and then plots Day Light.

for col in ['Sunset', 'Sunrise']:
    df[col+'Hr'] = df[col].apply(lambda t: t//100 + (t%100)/60)
df['Day Light'] = (df['SunsetHr'] - df['SunriseHr'])
df['Day Light'].plot()
plt.title('Hours of Daylight')

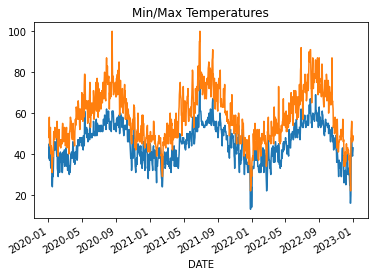

# we can grab one Series at a time and plot those on the same figure/axes.
df['MinTemp'].plot()
df['MaxTemp'].plot()
plt.title('Min/Max Temperatures')

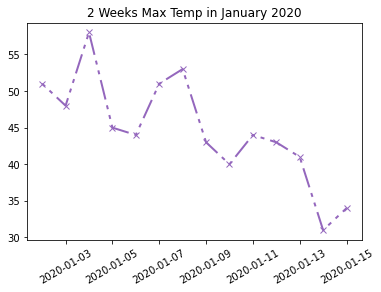

We can customize the line using some parameters to the plt.plot method. In most cases, you’ll want to use one of the string shorthand representations of linestyles. ['-', '--', ':', '-.'] But, we choose to set a custom dashed style, because we can. See linestyle documentation for more details.

# Time-Slice the first 2 weeks of 2020
january = df['MaxTemp'].loc['2020-01-01':'2020-01-14']
# Set line color, width, style and markers.
plt.plot(january, color='tab:purple', linestyle=(0, (2, 3, 2, 3, 10, 3)), marker='x', linewidth=2)
plt.xticks(rotation=30)
plt.title('2 Weeks Max Temp in January 2020')

Twinx Plots¶

There are times when we want to plot two lines together but their units are dramatically different. You can see this impact in the DataFrame Default image at the top of this page.

Here we will look at an example where the units get in the way of our plot. Then, we will address it using twinx. Online example

Let’s plot the normal temperature (average temperature over many years) along with the the average current temperature and the amount of current precipitation.

# Creating a DataFrame and plotting it is very simple and gets us most of
# what we want. We are missing a proper scale for the rain.

# Resample the Average Temperature at the weekly rate to remove noise.
at = df['AvgTemp'].loc['2021-08':'2022-07'].resample("W").mean()

# Resample and sum up the rain for the week to amplify the values.
# Using a mean() value has the amount of rain too small.
rain = df['Precipitation'].loc['2021-08':'2022-07'].resample('W').sum()

# To have a valid DataFrame, we need an equal number of rows in each column.
# Eventhough the normal temperature is already smooth, we resample to reduce
# the number of rows to match the other columns and to give a good mean value.
sn = df['Normal'].loc['2021-08':'2022-07'].resample("W").mean()

# Create the data frame from a dictionary representation of these 3 Series.
df_year = pd.DataFrame({'Normal Temp': sn,
                        'Avg Temp for Week': at,
                        'Total Rain for Week': rain})

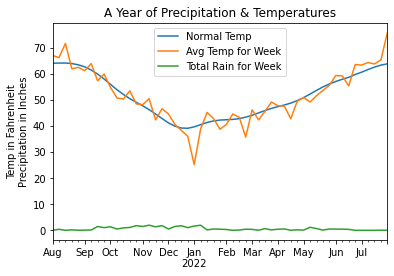

df_year.plot()
plt.title('A Year of Precipitation & Temperatures')
# The y-axis represents two units!
plt.ylabel('Temp in Fahrenheit\nPrecipitation in Inches')
# Remove 'DATE' from label as it is obvious
plt.xlabel('')

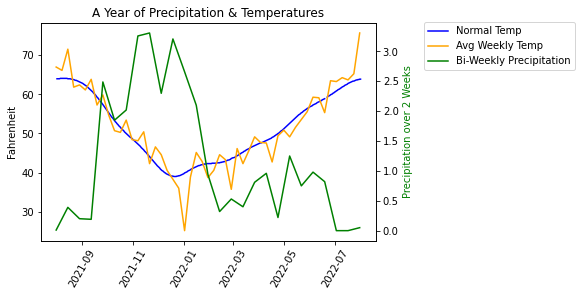

fig, ax1 = plt.subplots(1)

# No need to resample - the curve is smooth
sn = df['Normal'].loc['2021-08':'2022-07']
# To smooth out the Avg Temp curve, weekly is sufficient
at = df['AvgTemp'].loc['2021-08':'2022-07'].resample("W").mean()
# Resample bi-weekly to smooth out the curve even more
rain = df['Precipitation'].loc['2021-08':'2022-07'].resample('2W').sum()

# This needs to be set before calling the plot() method
plt.xticks(rotation=60)

# Be sure to set the labels here for retrieval later
ax1.plot(sn.index, sn.values, label='Normal Temp', color='b')
ax1.plot(at.index, at.values, label='Avg Weekly Temp', color='orange')
ax1.set(xlabel='', ylabel='Fahrenheit')
# create another axis
ax2 = ax1.twinx()
ax2.plot(rain.index, rain.values, label='Total Bi-Weekly Rain', color='g')
ax2.set_ylabel('Total Rain for Week', color='g')

# The above code creates two distinct legends.
# Let's combine the two sets into a single legend.
handles1, labels1 = ax1.get_legend_handles_labels()
handles2, labels2 = ax2.get_legend_handles_labels()
combined_handles = handles1 + handles2
combined_labels = labels1 + labels2
# position the upper-left of the legend to the coordinates (1.0, 0.9)
# where these are percentages of the size of the figure. This pushes
# the legend to the right of the figure
fig.legend(combined_handles, combined_labels, loc='upper left', bbox_to_anchor=(1.0, 0.9))
plt.title('A Year of Rain & Temperatures')

Another Twinx Example¶

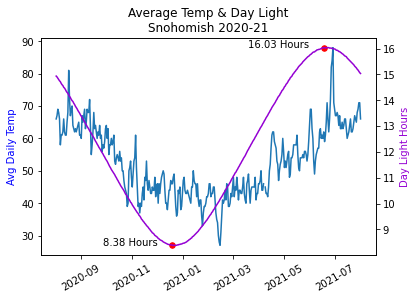

This example is nice because it annotates the daylight curve with the length of the day. The plot shows how the average temperature “lags” the length of the day: the temperature doesn’t change immediately with the length of the day.

The code takes a time-slice for a 12 month period. When finding the equinox points, we make use of Tuple packing and unpacking to combine two lines of code into one line. This is a bit of a trick and is a nice way to shorten highly similar code.


Code

avg = df['AvgTemp'].loc['2020-08':'2021-07']
day_len = df['Day Light'].loc['2020-08':'2021-07']

# find the minimum and maximum daylight days.
# Use Tuple packing and unpacking to reduce the line count. Trick!
min_day, max_day = day_len.idxmin(), day_len.idxmax()
min_len, max_len = day_len[min_day], day_len[max_day]

# Create a figure and a set of subplots
fig, ax1 = plt.subplots(1)

# Plot the first series on the left y-axis
# We need to set the rotation before we plot
plt.xticks(rotation=30)
ax1.plot(avg.index, avg.values, color='tab:blue')
ax1.set_ylabel('Avg Daily Temp', color='b')
ax1.set_xlabel('')

# create a second axes for better visualization of Day Length
ax2 = ax1.twinx()

# plot the Day Length and set the label
ax2.plot(day_len.index, day_len.values, color='darkviolet')
ax2.set_ylabel('Day Light Hours', color='darkviolet')

# plot the min/max with red points and annotate the day length
ax2.scatter([min_day, max_day], [min_len, max_len], color='red', s=30)
for x, y in zip([min_day, max_day], [min_len, max_len]):
    # right align the text to the xy-offset value
    ax2.annotate(f'{y:.2f} Hours', (x, y), textcoords='offset points',
             xytext=(-15,0), ha="right", color='black')

plt.title('Average Temp & Day Light\nSnohomish 2020-21')

Seaborn¶

I’ve found that using Seaborn is helpful in only a few situations.

1. When the data is in the “unpivoted” format.

2. When you have multiple y-values at the same x-value and you want to average them out automatically.

3. When you have many lines that you want to plot with different colors.

4. When you want to differentiate the lines using size or style.

5. When you want to do a scatter plot and do a line of best fit.

Pivoted vs Unpivoted PIVOTED

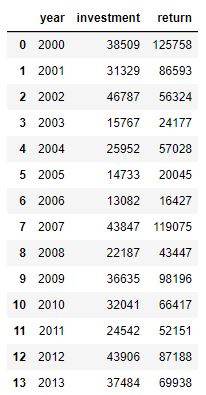

The “pivot” format is where the data is simply organized by column. There is a column that contains the x-values, and there is a column that contains the y-values. In the data shown below, we would use the column year as the x-value, and the columns investment and/or return as the y-value to draw one or two lines.

UNPIVOTED

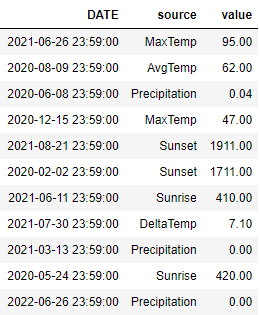

The “unpivoted” format is where there is a column dedicated to expressing which “line” the row belongs to. For example, in the data shown below, you might use the DATE column of the DataFrame as the x-axis, use the value column as the y-value and have different lines depending on the source column. In other words, You’d have one line for ‘MaxTemp’ and another line for ‘AvgTemp’. In this example, the source column contains the name of the line that the data belongs to.

Here is code that shows how we can restructure the data from one format to the other.

• df.melt

• df.pivot

df_unpivoted = df_pivoted.melt(value_name='value', var_name='source', ignore_index=False)
df_unpivoted.reset_index(inplace=True)

# go back to the original pivoted format
df_original = df_unpivoted.pivot(index='DATE', columns='source', values='value')
